Product Introduction

Capable of sensing reflecting light signal from mark on rotating shaft to supply instrument with trigger or rotating speed signal.

Specifications:

• Output signal options:

  5V(with 5Vdc power) or 24V(with 24Vdc power) TTL impulse

• Indicator: LED, flash when there is an impulse

• Operating Temperature Range: 0 ~ 48 ^oC (Optional high to 70 ^oC)

• RPM range: 60 ~ 60000 r/minute

• Laser distance to the shaft: 20~2000 mm,depending on reflecting condition.

• Connector type: Sendig 301(plug supplied together)

• Power source: 4.5~5.5Vdc, or 20~28Vdc, 28mA

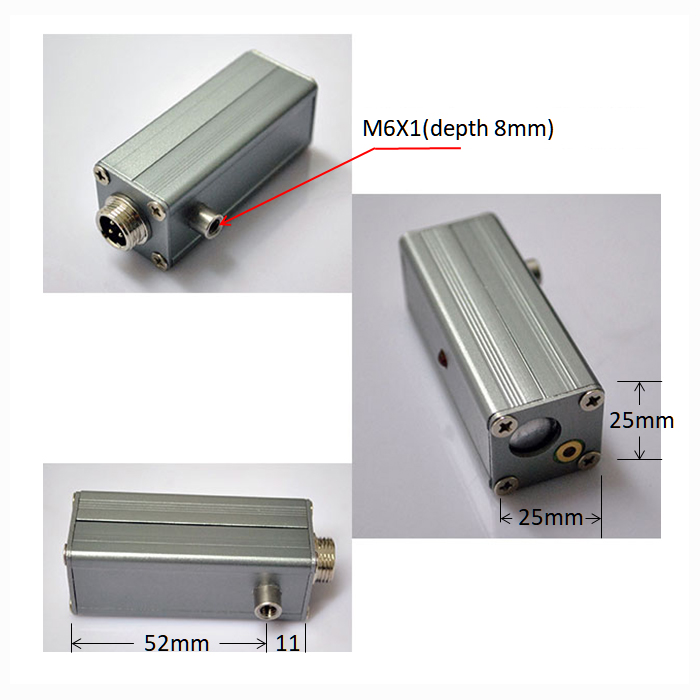

• Dimension (mm): 65(Length) × 25(width) × 25(High)

• Weight: 50g
