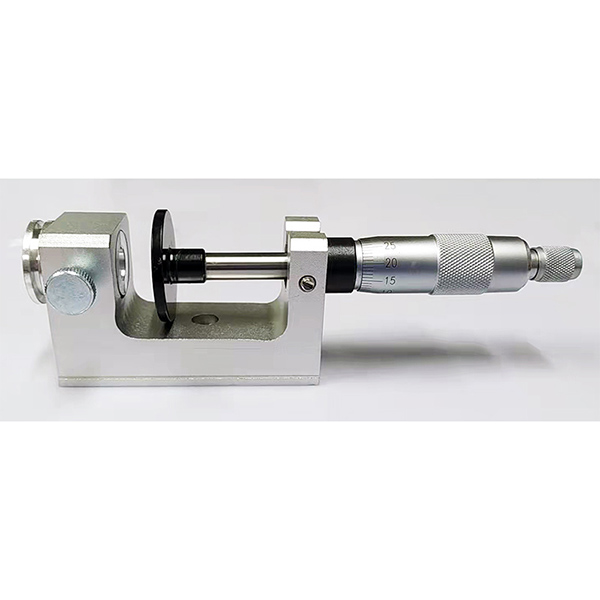

GJX-JB Proximity Transducer Verification MICROMETER

An ideal tool for performing acceptance testing on proximity transducer systems to help verify whether the transducer system is working properly and within published specifications.
A probe mounting adapter holds the probe while a high precision micrometer is moved toward or away from the probe tip in specific increments. This simulates the position of the shaft. The output from the proximity transducer system may be recorded using a voltmeter.

Resolution: 0.01 mm

Accuracy: ±0.003 mm

Range: 0-25 mm

Target Plate: Steel, 32 mm diameter

Straight non-rotation micrometer

Max probe diameter: 18mm

Mounting Adapters for 8mm probe;

2 fixing screws for other probe diameters

Total length without probe: 180mm
